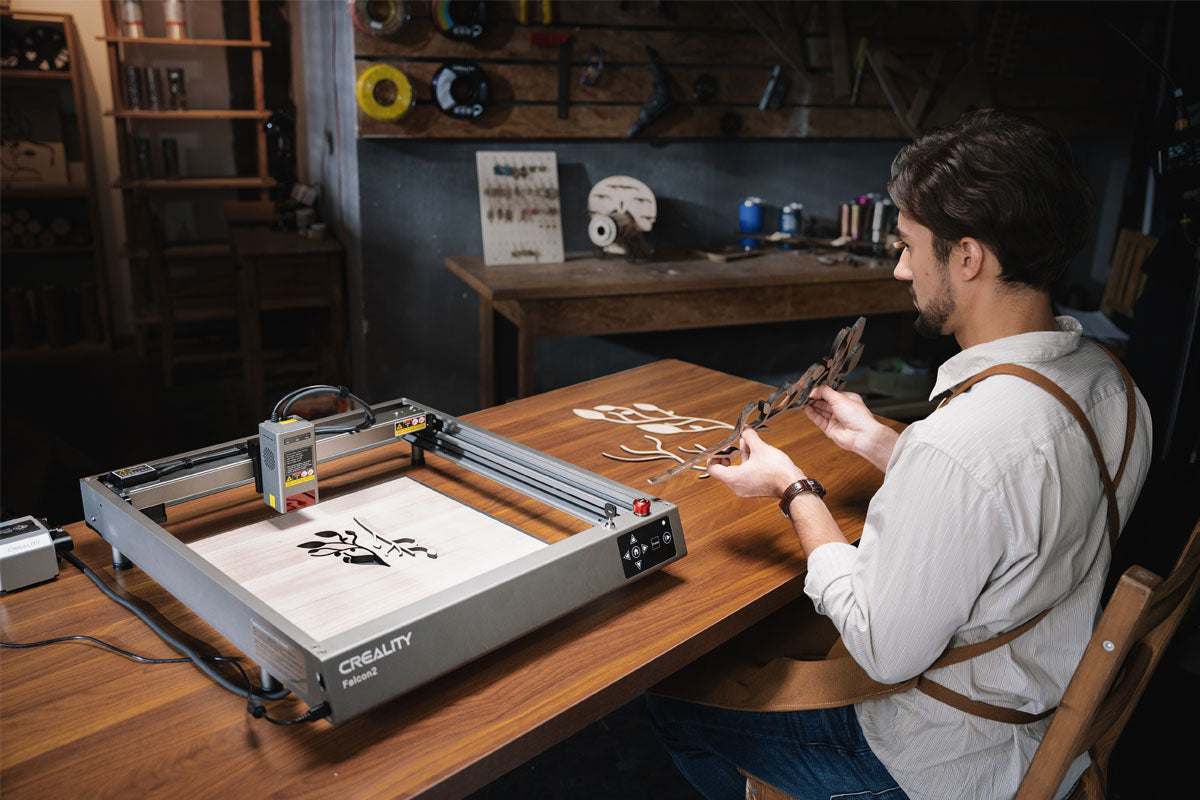

The CrealityFalcon 22W Laser Engraver marks a significant leap in desktop laser engraving technology. Combining ease of assembly, powerful performance, and versatile functionality, it's designed to cater to both beginners and experienced users. Its standout features include a robust 22W laser capable of cutting thin metal, high-speed operation, and extensive compatibility with various software and operating systems. This review delves into its assembly, usage, pros, and cons to provide a comprehensive understanding of its capabilities.

Package List

1. Machine Frame
2. Raiser Stand (including pads) *4
3. Raiser Stand (without pad)*4
4. Laser Module*1
5. Air Pump
6. USB-C Cable*1
7. Multi-level Fixed Focus Block
8. Goggles*1
9.Basswocd Board*3
10. Anti-static Brush *1
11. Storage Box*1
12. Power Supply*1
13.M1.5/M2/M2.5/M3 Allen Wrench
14.0pen-end Wrench*1
15.TF Card & Card Reader
16.USB-A to USB-C Adapter
17.Key*1
18.Protective Lens
19.M3X10/M4X6 Hexagon Socket Head Screw*4
20.Dust-free Cloth1
21.Black Cable Straps*3
22.Metal Protection Plate*1

Assembly

The CrealityFalcon 22W stands out for its user-friendly assembly process. This laser engraver arrives mostly pre-assembled, requiring only a few steps to get started:
1. Install the Riser: Positioned at the bottom of the frame, the riser features multiple holes to adapt to various table sizes.
2. Laser Module Installation: Secure the laser module using screws.
3. Air Assist Connection: Easily connect the air assist using a plug and hose.
4. Enclosure Assembly: Finalize by assembling the enclosure, ensuring safety and cleanliness during operation.
Device Status Check
Ensuring the machine's stability and proper setup is crucial for optimal performance:
1. Belt Tension: Check that the belts are tensioned correctly.
2. Frame Stability: verify that the frame is square and stable.
3. Screw Tightness: Ensure each screw is tightened properly to prevent any movement or jitter during operation.

How to Use

With the machine assembled, you can operate it in two ways:

Online Work with PC/Mac by Lightburn:

1. Connect the PC/Mac via cable.
2. Launch Lightburn and set up your project with the correct speed and power settings.
3. Use the "Frame" button for a preview.
4. Start the operation once everything is set.

Offline Creation:

1. Load the G-code file onto a TF card and insert it into the machine.
2. Press the "Frame" button to preview your design.
3. Start the engraving process if all looks good.

Pros

- Ease of Use: Suitable for beginners and professionals alike.
- 22W Cutting Power: Exceptionally powerful, capable of cutting 0.1mm metal.
- High Speed: Achieves engraving speeds up to 25000mm/min.
- Integrated Air Assist: Enhances cleanliness and lens protection.
- Simple Assembly: Only three steps required for setup.
- Safety Features: Includes five safety protections for a secure experience.
- Colorful Engraving: Capable of producing a wide range of colors.
- Extensive Compatibility: Works with various systems and software including Windows, macOS, LaserGRBL, and LightBurn.
- Offline Creation: Allows for engraving without a constant computer connection.
- Triple Monitoring Systems: Features flame detection and security monitoring.
- Motion Stability: Ensures synchronized and stable movement.

Cons

- Enclosure Quality: The enclosure is made of simple plastic, plastic cover and connector, which might not be very durable.
- Lack of Honeycomb Workbed: The absence of a honeycomb workbed may be a drawback for some users.

The CrealityFalcon 22W Laser Engraver is a robust and versatile tool that makes precision engraving accessible to a wide audience. Its impressive cutting power, high-speed capabilities, and ease of assembly make it a standout choice in its category. While the plastic enclosure and lack of a honeycomb workbed are minor drawbacks, they do not significantly detract from the machine's overall performance and value. Whether for hobbyists or professionals, the CrealityFalcon 22W is a reliable and efficient choice for bringing creative visions to life.
